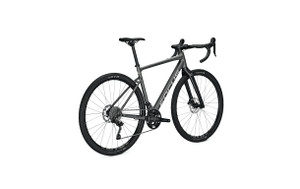

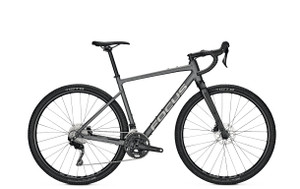

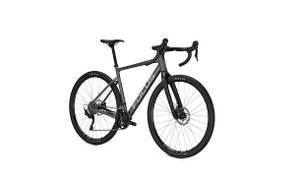

Atlas 6.7

ATLAS 6.7 FEATURES:

LIGHTWEIGHT AND ROBUST ALUMINIUM FRAME & CARBON FORK WITH INTEGRATED C.I.S. CABLE ROUTING, PLUS MOUNTING POINTS FOR EVERYTHING YOU NEED

SHIMANO GRX400 2X10 GROUPSET WITH SPECIAL GRAVEL ERGONOMICS FOR STABLE AND DEPENDABLE SHIFTING ON ANY TERRAIN

RELIABLE STABILITY AND LONG-LASTING QUALITY: DOUBLE-SEALED NOVATEC ROAD BOOST HUBS AND 23 MM WIDE WTB RIMS

PUSHES BOUNDARIES

COMFORT AND CONTROL ON ANY TERRAIN

Whether bad weather, demanding surface, steep climbs or long distances - the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.

HUGE TYRE CLEARANCE

The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 51 mm. Therefore, you have plenty of opportunities to spec your ATLAS appropriate to your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride - even to the end of the world.

VARIOUS OPTIONS TO MOUNT EQUIPMENT

Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment.

FRAME
Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing

FRAME MATERIAL
Aluminium

FORK
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points

SHIFTER
Shimano GRX 400

FRONT DERAILLEUR
Shimano GRX 400

REAR DERAILLEUR
Shimano GRX 400

SPROCKET
Shimano CS-HG5010, 10-speed

CHAIN
Shimano Tiagra CN-4601

CRANKSET
Shimano GRX 600

BOTTOM BRACKET
BSA

TRANSMISSION OF DRIVE
vorne: 46/30, hinten: 11-36

HANDLEBAR
FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10 degree

STEM
Aluminium, 31,8 mm, 6 degree

HEADSET
Acros IS 52/286-IS52/40, FOCUS integrated C.I.S.

SADDLE
WTB SL8

SEATPOST
Aluminium, 27,2 mm, 350 mm, 0 mm set-back

BRAKES
Shimano GRX 400

BRAKE LEVER
Shimano GRX 400

BRAKE
Disc

RIMS
WTB ST i23 TCS, tubeless ready

REAR HUB
Novatec D041, 12x148 mm, Shimano 11 speed

FRONT HUB
Novatec D041, 12x110 mm

TIRES
WTB Riddler, 700 x 45C

GEARS
20

BIKE WEIGHT INCL. BATTERY IN KG.
10,95 kg
